Process Flow
Manually place the boxesinto themold→Automatically unwind the film→Automatically perform the first sealing and cutting→ Automatically reinforce the sealin the second step→Automatically remove the boxes with suction devices.
scope of application

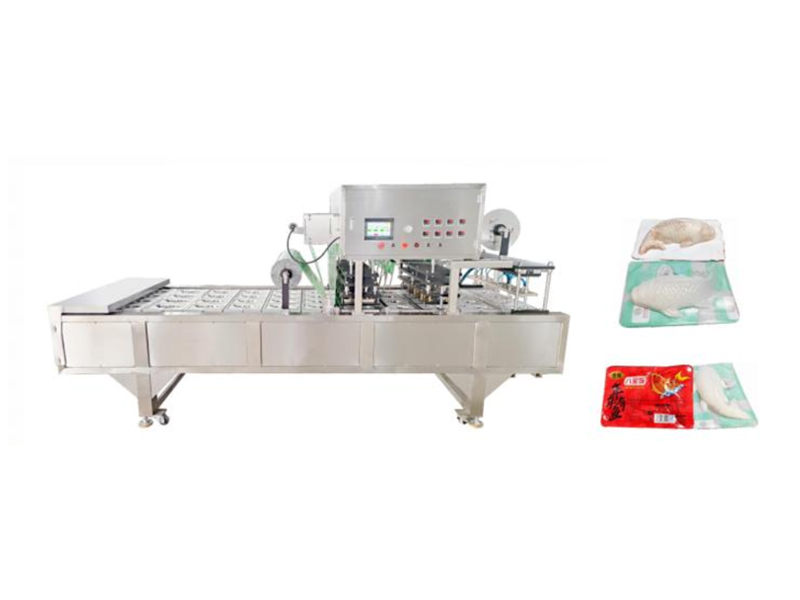

In -line eight-treasure rice pudding sealing machines are widely used in various fields such as catering,food,health supplements. cosmetics,daily chemicals,and pharmaceuticals.They are suitabie for packaging productslike eight-treasure rice pudding,cooked ri and mixed grains.
Theframeof this machine is made of high-quality stainless steel and aluminum alloy.
Electrical and pneumatic components all adopt internationally renowned brands,ensuringstable working performance.
Functions:Theoperationsofautomatically unwinding the film,sealing,and product output areallautomated.
wesupportcustomized production according to non-standard specifications,and it can be equipped with an assembly line.
technical parameters
Machine type |
JCL32-2 |
JCL32-4 |
JCL32-6 |
JCL32-8 |
packaging speed |
800-1800 cups/hr |
1600-3600 cups/hr |
2400-5400 cups/hr |
cups/hr |
Machine voltage |
110V/220V/380V |
|||
Machine power |
4KW |
5KW |
6KW |
7KW |
Working pressure |
0.6-0.75Mpa |
|||
~chlne |
2000*650*1600 mm |
2000*750*1600 mm |
2000*850*1600 mm |
2000*950*1600 mm |
Machine weight |
400Kg |
500Kg |
600Kg |
700Kg |
