Process Flow
The conveyorbelt pushes the barrels into themold→Automatic barel pressing→Automaticfilm unwinding→Automatic first sealing
and cutting→Automatic second sealing for reinforcement→Automatic suction cups take the barrels out onto the conveyor belt→Automatic waste film collection
scope of application

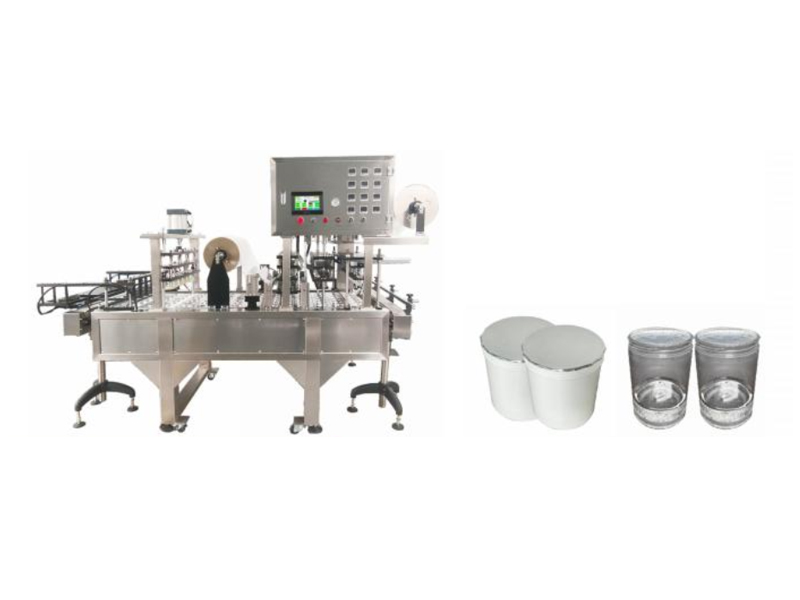

The pipeline barreland bottle sealing machines are widely used in variousfieldssuch as catering,food,health products,cosmetics,daily
The frame of this machine is madeofhigh-quality stainless steeland aluminum alloy.
Electrical and pneumatic components all doptinternationallyrenownedbrands,ensuring stable working performance.
Functions:The operations ofautomatically pushing barrelsby the conveyor belt,pressing barels,releasing film,sealing,and productoutput areall automated.
We support customized production according to non-standard specifications,anditcan be equipped with an assembly line.
technical parameters
|
Machine type |
JCL32-2 |
JCL32-4 |
JCL32-6 |
JCL32-8 |
|
packaging speed |
800-1800 cups/hr |
1600-3600 cups/hr |
2400-5400 cups/hr |
3200-7200 cups/hr |
|
Machine voltage |
110V/220V/380V |
|||
|
Machine power |
4KW |
5KW |
6KW |
7KW |
|
Working pressure |
0.6-0.75Mpa |
|||
|
Machine sive |
2000*650*1600 mm |
2000*750*1600 mm |
2000*850*1600 mm |
2000*950*1600 mm |
|
Machine weight |
400Kg |
500Kg |
600Kg |
700Kg |
